تفاصيل المنتج:
|
| مراقبة الرطوبة: | 20٪ ~ 98٪ ر | تقلب درجات الحرارة: | ± 1.0 ℃ |
|---|---|---|---|
| قوة: | 220 فولت ، 50 هرتز | قرار تحكم: | ± 0.3 ℃ ； ± 2.5٪ رطوبة نسبية |
| نوع التبريد: | ماء بارد | توحيد درجة الحرارة: | ± 2.0 |
| مكثف: | عامل تكثيف مبرد بالماء | الكلمة الرئيسية: | غرفة درجة الحرارة والرطوبة |

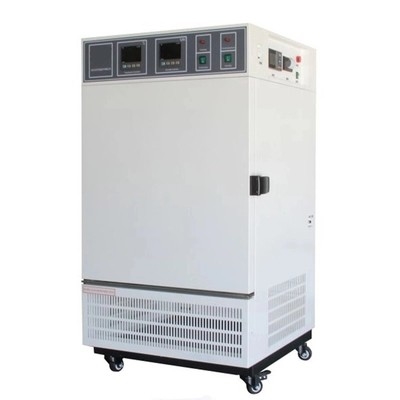

220V Constant Temperature And Humidity Chamber With Stainless Steel Tank
Advantages:
1.The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.
2.The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.
3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.
4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.
Technical Specification:
| Inside size WxHxD
(cm)
|
40x50x40
|
|
|
|
100x100x80
|
|
|
| Outside size WxHxD
(cm)
|
|
|
|
|
|
|
|
| Temperature range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) | ||||||
| Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage
compressor(-40℃~-70℃)
|
||||||
| protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||||
| accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | ||||||
| controller | TEMI300 digital controller from South Korea | ||||||
| compressor | France Tecumceh | ||||||
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
Chamber Summary:
Easy To Operating Performance of climate temperature humidity test chamber for electronics, plastic products, electrical appliances, instruments, metals, chemicals, building materials, food, vehicles, aerospace, medical ... Products of quality.
Easy To Operating Temperature Humidity Chamber specially test various materials resistance to heat, cold, dry, wet performance
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
